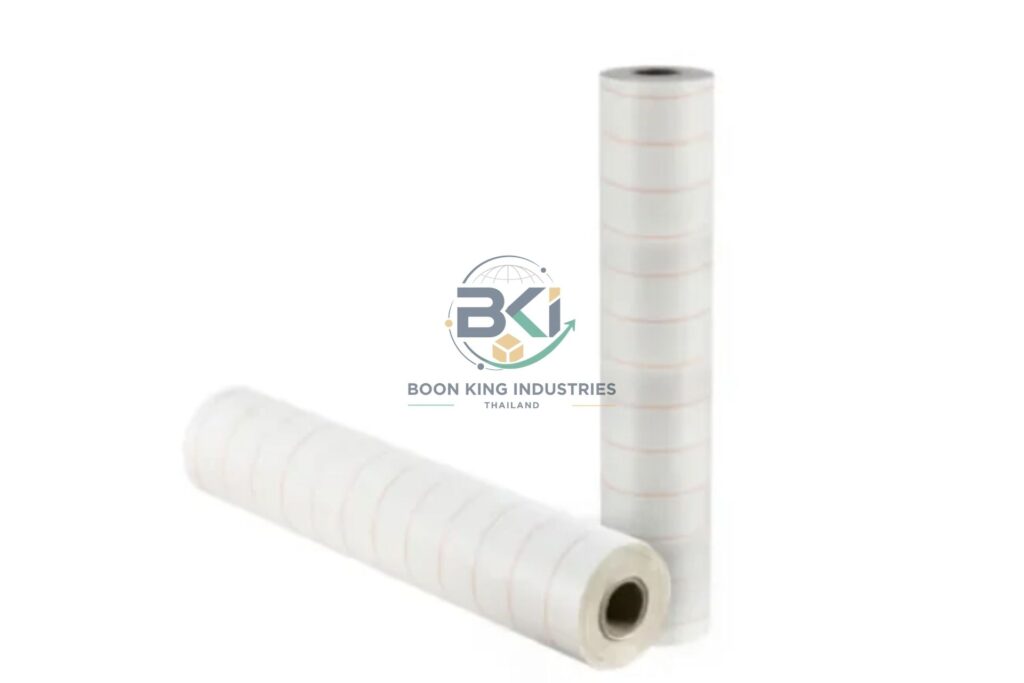

Boon King Industries provides high-quality APA-AMA Flexible Laminates, a composite insulation material made from two layers of Aramid Paper with a polyester film layer between them. This construction provides excellent heat resistance, mechanical strength, tear resistance, and dielectric performance.
Designed for Class F applications up to 155°C, APA-AMA Flexible Laminates are suitable for demanding electrical insulation requirements and are available in rolls, sheets, and strips.
APA-AMA Flexible Laminates are widely used as insulation materials in:
The combination of Aramid Paper and Polyester Film provides excellent thermal stability, strength, flexibility, and electrical insulation. The material is particularly suitable for applications requiring reliable performance under heat and mechanical stress.
Boon King Industries offers APA-AMA Flexible Laminates in different thicknesses, widths, lengths, and formats according to customer requirements.
| Property | Unit | 0.15 mm | 0.18 mm | 0.23 mm | 0.30 mm | 0.35 mm |
|---|---|---|---|---|---|---|
| Thickness Tolerance | mm | +0.02 | +0.03 | +0.03 | +0.04 | +0.04 |
| Grammage | g/m² | 180 ±25 | 210 ±30 | 260 ±35 | 350 ±50 | 430 ±50 |
| Tensile Strength MD – No Bending | N/50mm | >150 | >160 | >200 | >270 | >320 |
| Tensile Strength MD – After Bending | N/50mm | >80 | >110 | >150 | >200 | >250 |
| Tensile Strength TD – No Bending | N/50mm | >90 | >110 | >150 | >200 | >250 |
| Tensile Strength TD – After Bending | N/50mm | >70 | >90 | >130 | >170 | >200 |
| Elongation MD | % | >10 | >10 | >10 | >10 | >10 |
| Elongation TD | % | >15 | >15 | >15 | >15 | >15 |
| Breakdown Voltage – No Bending | kV | >7 | >10 | >12 | >15 | >20 |
| Breakdown Voltage – After Bending | kV | >6 | >8 | >10 | >13 | >16 |
| Bending Property at Room Temperature | — | No Delamination | ||||
| Banding at 180°C ±2°C for 10 min | — | No Delamination, No Bubble, No Adhesive Flow | ||||
| Long-Term Heat Resistance (TI) | °C | >155 | ||||
We combine quality materials, technical knowledge, and customer-focused service to provide dependable electrical insulation solutions. Our APA-AMA laminates are available in flexible formats and specifications to meet different application requirements.
Contact Boon King Industries with your required thickness, width, format, or technical specification
