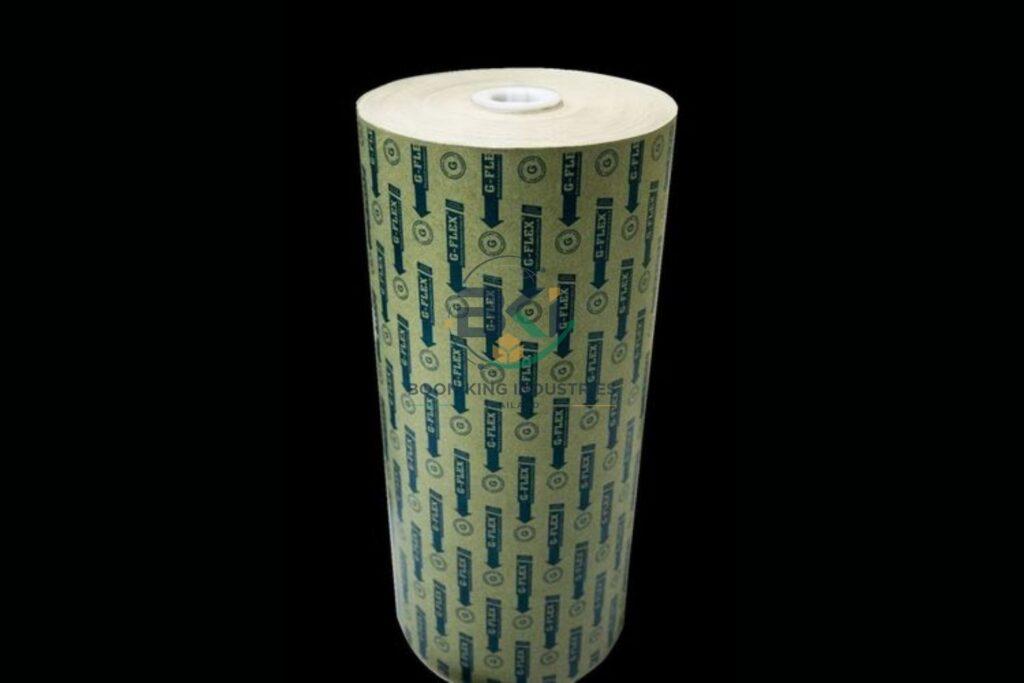

Boon King Industries provides high-quality Triplex Paper G-Flex, a composite insulation material made from insulating paper and polyester film. Manufactured using high-temperature adhesive, the layers are integrally bonded to provide excellent mechanical protection, electrical insulation, and reliable performance.
Designed for electrical equipment with a maximum service temperature of 130°C, G-Flex is available in duplex and triplex constructions. The triplex paper/film/paper construction provides additional mechanical protection, while film/paper/film constructions offer enhanced moisture resistance and surface resistivity.
Triplex Paper G-Flex is suitable for a wide range of electrical, industrial, and specialty applications, including:
Triplex Paper G-Flex combines electrical insulation, mechanical protection, flexibility, and moisture resistance. Its layered construction helps protect the polyester film while providing dependable performance in electrical equipment and other demanding applications.
| Property | Unit | 0.10 | 0.13 | 0.15 | 0.18 | 0.20 | 0.30 | 0.35 | 0.40 | 0.45 | 0.50 | 0.60 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness | mm | 0.10 | 0.13 | 0.15 | 0.18 | 0.20 | 0.30 | 0.35 | 0.40 | 0.45 | 0.50 | 0.60 |
| Thickness Tolerance | % | ±15 | ±15 | ±15 | ±15 | ±15 | ±15 | ±15 | ±10 | ±10 | ±10 | ±10 |
| Nominal Grammage | g/m² | 115 | 155 | 215 | 215 | 250 | 300 | 370 | 430 | 490 | 610 | 730 |
| Unfolded Tensile MD | N/10mm | 90 | 100 | 150 | 150 | 180 | 220 | 270 | 300 | 360 | 450 | 540 |
| Unfolded Tensile CMD | N/10mm | 60 | 70 | 100 | 100 | 120 | 140 | 180 | 200 | 240 | 300 | 360 |
| Folded Tensile MD – Film Inside | N/10mm | 70 | 80 | 100 | 110 | 140 | 170 | 210 | 240 | 280 | 350 | 420 |
| Folded Tensile CMD – Film Inside | N/10mm | 40 | 50 | 70 | 70 | 80 | 100 | 100 | 140 | 160 | 200 | 240 |
| Elongation MD | % | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation CMD | % | 10 | 10 | 10 | 10 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
We combine quality materials, technical knowledge, and customer-focused service to provide dependable electrical insulation solutions. G-Flex can be supplied in different constructions and formats to suit specific application requirements.
Contact Boon King Industries with your required thickness, width, construction, format, or technical specification.
